Description
LED cube display is also known as cubic LED display or LED cube screen. LED
helicoid and LED hemisphere together with it are successfully displayed in Hefei pavilion in Anhui
high-tech achievement exhibition center. The length of side of this product is
1.28 m. It adopts PH4 high definition display. Six-surface stereo display
realizes seamless connecting completely.
Application
LED cube display or cubic LED video display (screen,panel,curtain,wall) is
extensively applied in science and technology museums, galleries, lounges,
hotels, high-speed railway stations, subway stations, shopping malls, bars and
other places. It adopts new performance form, which makes a strong visual
impact on audience.
Main Features
1. High resolution and high pixel density makes our LED cube displays recreate
high-definition images and acquire uniform color, high color contrast ratio,
and clear pictures.
2. Cubic LED video display (screen,panel,curtain,wall) adopts SMD triad LED,
which makes displays have ultra wide angle of view and better surface roughness
either in indoor or outdoor venues.
3. Unique design makes the whole cube easy to move, install, transport and load
and unload.
4. Shenzhen Apexls Company is able to supply LED cube displays, featuring high
efficiency, high reliability and long service life.
5. It is compatible with a variety of signal input, such as AV, S - Video, DVI,
VGA, HDMI, SDI, and so on.
6. We make use of wooden cases to package cubic LED video display
(screen,panel,curtain,wall) for protection.
7. LED cube screen is designed with high grey level (grayscale) and high
refresh rate. The grey level is more than 4096 and the refresh rate is over 600
Hz. All these makes LED cube displays show images without any delay and ghosting
phenomenon.
Dimension of Cubic LED Display (Customized)
Technical Parameters of LED Cube Display
Model |
PH4 |
Pixel Pitch |
4 mm |
Pixel Composition |
1R1G1B |
Pixel Density |
62500 pixels/m2 |
LED Encapsulation |
2020 (2121) |
Scanning Mode |
1/16 (The ratio of lines that are lightened simultaneously in a fixed area with lines in the whole area) |
Screen Luminance |
≥1600 nit |
Average Power |
3.2 kW |
Max. Power |
7.8 kW |
Service Environment |
Indoor |
Resolution Ratio |
(320*144)*6 |
Overall Size |
(1280 mm*1280 mm)*6 |
Sphere Area |
9.8304 m2 |
Refresh Rate |
600 Hz to 5000 Hz (It differs depending on driver chips.) |
Grayscale |
4096-65536 (It differs depending on driver chips.) |
AC Input Voltage |
110-240V ±10% |
Power Input Frequency |
50/60 Hz |
Brightness Adjustment Level |
Grade 100 Automatic or Manual Adjustment |
Color Temperature |
3200 K-9500 K (Adjustable Available) |
Working Temperature Range |
-20℃ to 60℃ |
Working Humidity Range |
10% to 90% |
Normal Service Life |
≥ 100000 hours |
Average Error-free Time |
≥ 5000 hours |
Malfunction Dot Rate |
< 0.0001 |

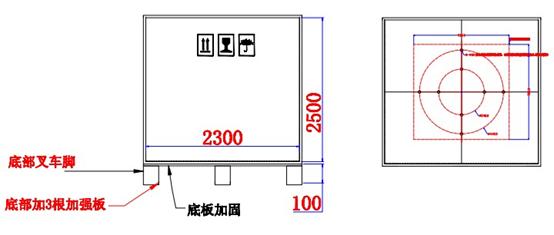

Packaging and Transportation
1.
In order to ensure that cubic LED video display (screen,panel,curtain,wall)
will not be damaged because of shake in the process of packaging and transport,
please use wooden cases to package displays customized by Apexls.
2. Please package LED cube displays and standard accessories separately, so as
to ensure their transportation safety.
