Application
Stadium LED display, also called stadium LED screen or perimeter LED display, is widely used in
football fields, baseball fields, tennis courts, and so on. This kind of LED
video display, screen, panel, curtain, or wall can vividly play items such as
text, picture and video. It can realize play of clear information at the same
time.
Performance
1. Automatic Backup System
Apexls stadium LED displays could utilize two computers to ensure
interruption-free display of images and videos. If one unit was to turn off due
to technical issues, the other one will automatically act as a backup solution.
2. High Refresh Rate
The refresh rate of our stadium LED screen can reach 4800 Hz. It can display
flicker-free video images, including live sports video.
3. Impact Resistance
Stadium LED display adopts specially designed soft module masks, which can
offers protection to the unit itself and protect players from injury.
4. Unique Design

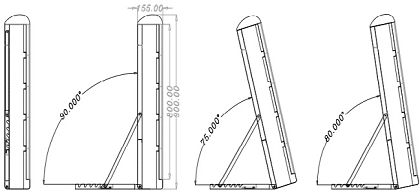

The cabinet is designed with adjustable inclination angle (75°-90°), enabling
all the audience to enjoy the display contents.
5. Real-time Performance
Our stadium LED screens use high-effective optical fiber transfer system that
is designed to ensure speed update of information and the uniformity of images.
6. Outstanding Performance in All Weather
With IP65 protection grade, our stadium LED displays can be protected away from
rain or water damage and work steadily in rain.
Characteristics
of Stadium LED Screen
1. This kind of LED video display, screen, panel, curtain, or wall is designed
uniquely, which ensures simple installation and convenient transportation.
2. Our company is able to supply stadium LED displays with high stability, high
reliability and long service life.
3. It is compatible with a variety of signal input, such as AV, S - Video, DVI,
VGA, HDMI, SDI, and so forth.
4. We make use of wooden cases to package stadium LED screens for protection.
5. Our stadium LED display is designed with high grey level (grayscale) and
high refresh rate. The grey level is more than 4096 and the refresh rate is
over 800 Hz. All these make it show images without any delay and ghosting
phenomenon.
Dimension of Stadium LED Screen
Technical Parameters of Stadium LED Display
Model |
PH10 |
PH16 |
Pixel Pitch |
10 mm |
16 mm |
Pixel Composition |
1R1G1B |
1R1G1B |
Pixel Density |
10000 pixels/m2 |
3906 pixels/m2 |
LED Encapsulation |
DIP 346 |
DIP 346 |
Scanning Mode |
1/4 |
Static Scanning |
Screen Luminance |
≥ 7000 nit |
≥ 7500 nit |
Average Power of Single Cabinet |
186 W |
223KW |
Max. Power of Single Cabinet |
432 W |
516 W |
Service Environment |
Outdoor |
Outdoor |
Resolution Ratio of Single Cabinet |
96*80 |
64*64 |
Cabinet Size |
960 mm*800 mm |
1024 mm*1024 mm |
Area of Single Cabinet |
0.768 m2 |
1.048576 m2 |
Refresh Rate |
800 Hz-10000 Hz (It differs depending on driver chips.) |
