Application
Sphere LED display, also
called LED video ball screen or spherical LED panel, is widely used in
museum, planetarium, science and technology museum, children’s palace,
exhibition hall, gymnasium, lounge or waiting hall, star hotel, large open
space, railway station, port, shopping mall, bar and other places.
Competitive Advantages
1. Our sphere LED displays adopt seamless connecting, which ensures high display effect.
2. Shenzhen Apexls Company is able to supply LED screens and LED panels with uniform pixel design.
3. Wonderful heat dissipation system ensures the LED display work around the clock.
4. Synchronous and asynchronous control system can make our sphere LED displays work with no stop.
5. It is easy to control and install. Special structure design can match all you installation cases.
6. LED screens are convenient for maintenance. We are able to supply excellent pre-sale and after-sale services for customers both home and abroad.
Technical Parameters of Sphere LED Display
Model |
PH10 |
Pixel Pitch |
10 mm |
Pixel Composition |
1R1G1B |
Pixel Density |
10000 pixels/m2 |
LED Encapsulation |
SMD 3528 |
Scanning Mode |
1/4 (The ratio of lines that are lightened simultaneously in a fixed area with lines in the whole area) |
Screen Luminance |
≥1300 nit |
Average Power |
0.774 kW |
Max. Power |
1.8 kW |
Service Environment |
Indoor |
Resolution Ratio |
320*144 |
Size |
Diameter: 1 m |
Sphere Area |
3.1415 m2 |
Refresh Rate |
600 Hz to 5000 Hz |
Grayscale |
4096-65536 |
AC Input Voltage |
110-240V ±10% |
Power Input Frequency |
50/60 Hz |
Brightness Adjustment Level |
Grade 100 Automatic or Manual Adjustment |
Color Temperature |
3200 K-9500 K (Adjustable Available) |
Working Temperature Range |
-20℃ to 60℃ |
Working Humidity Range |
10% to 90% |
Normal Service Life |
≥ 100000 hours |
Average Error-free Time |
≥ 5000 hours |
Malfunction Dot Rate |
< 0.0001 |
Packaging and Transportation
We make use of flight cases to package LED screens.
1. In order to ensure that sphere LED displays will not be damaged because of shake in the process of packaging and transport, please adopt the flight case customized by Apexls to package displays.
2. Please package LED spherical screens and standard accessories separately, so as to ensure their transportation safety.
3. Please take good care of flight cases. When return the sample cases, please put them into flight cases for packaging.

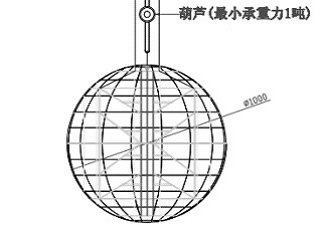

Dimension of Sphere LED Display
Floor Type LED Spherical Screen Suspending Type Sphere LED Display
Certificate of Patents
Other Products
1. Stadium LED Display
2. Cube For Basketball Stadium LED Display
3. Floor LED Display
4. Stair LED Display
5. Energy Saving LED Display
6. Solar LED Display
7. Inductive LED Display
8. Platform LED Display
9. Light LED Sculpture
Apexls is a professional manufacturer and supplier of sphere LED displays and LED panels in China. In addition to spherical LED screen, we are also capable of supplying cubic LED display, flexible LED display, spiral LED display, pop can shaped LED display, advertising LED display, brushed aluminum cabinet, die-casting aluminum cabinet, curtain LED display, outdoor curtain LED display, circular LED screen and high definition LED display. Our sphere LED displays have passed CE, ROHS, FCC and 3C certifications. If you have interest in our LED spherical screens, please feel free to contact us.
