Description
Inductive LED display or LED video curtain is a kind of electronic product
combing LED display, asynchronous control and distance sensor. When the sensor
senses an object within a certain distance (The distance can be set.), the set
words would be shown on the striped LED screen. It is a new, convenient and
practical product. Our inductive LED displays can send wireless signals and
data. The protection grade is IP65 and it has passed EMC certification.
Application
This striped LED screen is widely used in the entrance of public places such as
gas station, bank, office, commercial organization, and so on. When an object
is close to it, inductive LED display can play all kinds of user-defined
information.
Performance of Inductive LED
Video Curtain
1. The striped LED screen can be tiled or hoisted. It can be used as the main
screen or color screen on stage. There are corresponding connection pieces.
2. When inductive LED display is used in high-grade hall, KTV, bar, leisure
club and other places of entertainment, it can achieve the waterproof effect
and can be cleaned using water directly.
3. This striped LED screen can adapt to all kinds of damp and hot environment.
Its working environment temperature ranges from -40℃ to 60 ℃. It can also be installed in squares.
4. Its brightness, waterproof performance and weight bearing ability can
completely meet the requirements of outdoor use.
5. At the same time, the mask of inductive LED display uses PC and composite
materials having UV protection function. Even it is put in the sun, the display
surface will not turn yellow.
6. In addition, through the sensor or infrared technology, this type of LED
video curtain can realize interaction with the audience through the striped LED
screen.
7. Different inductive LED displays can be arranged into various shapes
arbitrarily. They can play magic color and high definition video, foil
atmosphere and show very good viewing effect.
8. It is also featured with easy installation, good heat dissipation
performance, convenient maintenance, strong shock resistance, clear color, etc.
Besides, this striped LED screen can bear the weight of 2 tons.

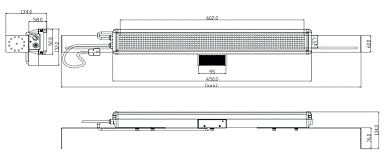

Dimension of Inductive LED Display
Technical Parameters of Inductive LED Display
Model |
P7.62 Outdoor/Semi-outdoor Striped Screen |
Pixel Pitch |
7.62 mm |
Overall Size of Striped Screen |
1100 mm * 132 mm * 134 mm |
Display Size of Striped Screen |
602 mm * 45.7 mm |
Pixel Density |
17222 dots/m2 |
Color of Luminous Point |
1R |
LED Encapsulation |
DIP 546 |
Resolution Ratio of Module |
79*7 dots |
Pixel of Display |
553 |
The Best Viewing Distance |
1 m to 8 m |
Horizontal View Angle |
120° |
Vertical View Angle |
45° |
Screen Luminance |
2000 cd/m2 |
Brightness Adjustment Level |
100 |
Drive Mode |
Constant Current Drive Mode |
DC Input Voltage |
5 V |
Peak Power |
15 W |
Power Input Voltage |
110/220 V |
Input Frequency |
50/60 Hz |
Working Temperature Range |
-20℃ to 60℃ |
Working Humidity Range |
10% to 90% RH (Relative Humidity) |
Font Size |
53.3 mm * 38.1 mm |
Transmission Mode |
RF Wireless Data Transmission (Radio Frequency) |
Control Mode |
Asynchronous Control |
Max. Life Span of Screen Body |
100,000 hours |
Normal Service Life |
≥ 20000 hours |
Average Error-free Time |
≥ 5000 hours |
Shenzhen Apexls is a professional manufacturer and supplier of inductive LED displays and LED video curtains in China. In addition to this striped LED screen, we are also capable of supplying sphere LED display, cubic LED display, flexible LED display, cylinder LED display, pop can LED display, advertising LED display, brushed aluminum cabinet, die-casting aluminum cabinet, curtain LED display, outdoor curtain LED display, circular LED screen and high definition LED display. Our products have passed CE, ROHS, FCC and 3C certifications. If you have interest in our inductive LED displays, please feel free to contact us.
